Software Requirements Specification (SRS)

Universal Log Pre-processing Framework (ULPF)

Problem Statement: SIH26156 (NTRO)
Team Stack: Python, React, WASM

1 Introduction

1.1 Purpose

This document specifies the software requirements and architecture for the Universal Log Pre-processing Framework (ULPF). The system converts any perimeter network device log into a standardized, lossless, analytics-ready OCSF representation for SIEM and data lake platforms.

1.2 Scope

In-Scope Devices: Perimeter hardware (Cisco ASA, Juniper SRX, Palo Alto NGFW, Fortinet FortiGate, Checkpoint, Proxy, VPN).
Supported Formats: Syslog (RFC3164/5424), JSON, CSV, CEF, LEEF.
Key Capabilities: Deterministic parsing, offline LLM mask synthesis, OCSF normalization, lossless simple-hash traceability, air-gapped deployment.
Validation Method: 100k EPS Synthetic Log Forge (to prove scale without requiring physical firewall hardware).

1.3 Definitions & Acronyms

OCSF: Open Cybersecurity Schema Framework.
Drain3: Fixed-depth tree log parser for deterministic, high-speed execution.
WASM: WebAssembly — sandboxed, hot-reloadable runtime for parsers.
LCU: Log Contrastive Unit — a group of logs differing only in parameters.
Air-Gapped: Deployable with zero internet egress (all models vendored).

2. System Architecture (The “Fabric”)

The ULPF is designed as a high-throughput data fabric, separated into three distinct planes:

Data Plane: Ingestion → WASM Registry → Drain3 → OCSF Mapper → Hasher → Dual Sink.
Control Plane: FastAPI Backend + React Parser Studio UI.
Synthesis Plane (Offline): Local LLM (DeepSeek-R1-8B) for one-time parser mask generation.

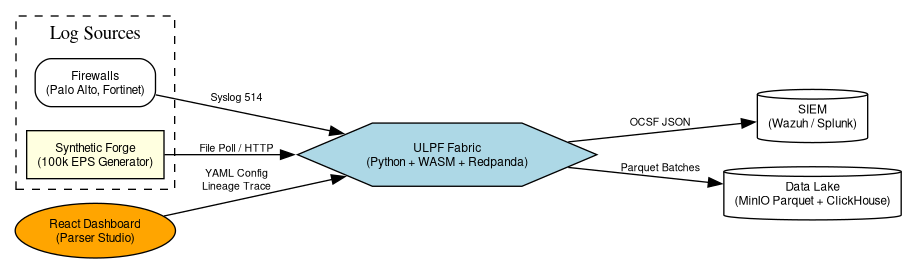

2.1 System Context & Data Flow

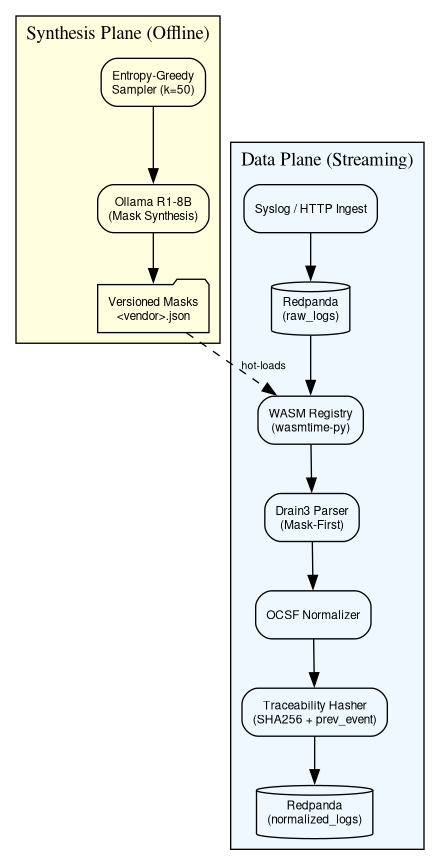

2.2 Component Architecture

3. Core Design Decisions (Why This, Not That)

Component	Chosen Technology	Why This?	Rejected Alternative (Why Not?)
Parser Engine	DeepParse (Drain3 + LLM Offline)	Deterministic O(N) speed, air-gap safe. LLM is only used once per format to generate masks.	Per-line LLM: 100x slower, non-deterministic, violates air-gap requirement.
Schema	OCSF 1.9.0 Hybrid	Vendor-neutral industry standard. Supports `record_integrity` attestation for forensics.	ECS/Splunk CIM: Creates vendor lock-in, violating PS generalization goal.
Integrity Proof	Simple Hash Chain (`prev_event`)	Meets PS lossless requirement, extremely fast, easily explainable to judges in 10s.	Merkle Trees/Blockchain: Over-engineered for demo, adds unnecessary latency.
Queue	Redpanda	Single binary, KRaft mode. Kafka API compatible but 200MB footprint.	Apache Kafka: Needs 3 containers (ZooKeeper), too heavy for 16GB laptops.
Plugins	WASM (`wasmtime-py`)	Memory-sandboxed. Bad parser YAML cannot crash the pipeline. Hot-reloads in 200ms.	Native Python Plugins: A crash in a custom parser kills the entire ingestion pipeline.
Database	ClickHouse + MinIO	Columnar storage saves 68% space. 10x faster scans for analytics.	Elasticsearch: JVM requires 2-4GB RAM, inverted index bloats storage.
Demo Setup	Synthetic Forge (Faker+Jinja)	Generates 100k EPS locally without needing physical firewall hardware.	Real PCAPs: Hardware intensive, difficult to inject drift for auto-heal demo.

4. Functional Requirements

4.1 Ingestion & Queueing

FR-ING-01: System SHALL accept logs via Syslog UDP/TCP (RFC3164/5424), HTTP POST, and file polling.
FR-ING-02: System SHALL buffer incoming raw logs in a durable Redpanda queue to handle burst backpressure.
FR-ING-03: System SHALL provide a Synthetic Forge to generate up to 100k EPS of realistic CEF/Syslog data for 5 vendors (Fortinet, Palo Alto, Cisco, Juniper, Checkpoint).

4.2 Parsing (Neuro-Symbolic)

FR-PAR-01: System SHALL execute parsing deterministically using a fixed-depth (depth=5, sim=0.4) Drain3 tree.
FR-PAR-02: System SHALL support offline LLM mask synthesis (synth_masks), generating regex masks from 50 entropy-sampled logs.
FR-PAR-03: System SHALL hot-reload parser plugins in a WASM sandbox without pipeline restarts (<200ms swap time).
FR-PAR-04: System SHALL trigger drift auto-healing (via LUNAR Log Contrastive Units) when the unparsed_rate exceeds 5% over 5 minutes.

4.3 Normalization & OCSF

FR-NRM-01: System SHALL map parsed fields to OCSF v1.9.0 (e.g., Class 4001 Network Activity).
FR-NRM-02: System SHALL retain 100% of the original log in the raw_data field and unparsed attributes in the unmapped dictionary.

4.4 Traceability & Integrity

FR-INT-01: System SHALL compute a SHA-256 hash of the raw log (raw_hash).
FR-INT-02: System SHALL chain events using the prev_event hash (simple hashing) using OCSF’s record_integrity profile to guarantee forensic sequencing.
FR-INT-03: System SHALL expose a /rehydrate API that rebuilds the raw log from the normalized fields and mathematically proves zero data loss (hash(rehydrated) == raw_hash).

4.5 Storage & UI

FR-STR-01: System SHALL output a dual-sink: (1) SIEM-ready JSON via Kafka, (2) 10k-event Parquet batches to MinIO/ClickHouse.
FR-UI-01: System SHALL provide a bespoke React/Vite/Tailwind dashboard featuring a 60fps virtualized log view, D3.js lineage trace graphs, and a real-time EPS health donut.

5. Non-Functional Requirements

NFR-01 (Throughput): 100,000 EPS sustained on a single vCPU (extrapolated via WASM performance logic) with 10k batching.
NFR-02 (Latency): p99 latency < 120ms from ingestion to SIEM queue.
NFR-03 (Air-Gapped): System MUST deploy via docker compose up from a pre-loaded .tar file with zero outbound internet connections (Ollama LLM runs locally).
NFR-04 (Lossless): 100% accuracy on raw rehydration (pytest fuzz 100k = 0 errors).
NFR-05 (Determinism): Same log line must yield the exact same template_id across restarts.

6. Verification & Traceability (Demo Strategy)

To ensure maximum points from the SIH evaluation jury, the demo will follow this exact sequence:

Capability to Prove	Demo Action	Pass Criteria
High Throughput	Run Synthetic Forge (`k6 run bench.js`).	Dashboard shows 100k EPS; CPU remains stable; Redpanda lag stays low.
Lossless Traceability	Click “Rehydrate” on a normalized OCSF event in the UI.	Green checkmark appears showing `rehydrated_hash == original_raw_hash`.
Plug & Play	Upload `juniper.yaml` via Parser Studio UI.	Pipeline begins parsing Juniper logs in <500ms with zero system restart.
Drift Auto-Heal	Inject 2% mutated logs (new `policy_id`) via Forge.	UI shows amber alert; LLM triggers in background; canary promotes new mask.
Air-Gapped	Disconnect host Wi-Fi before starting Docker Compose.	All services (including LLM mask synthesis) operate perfectly offline.
